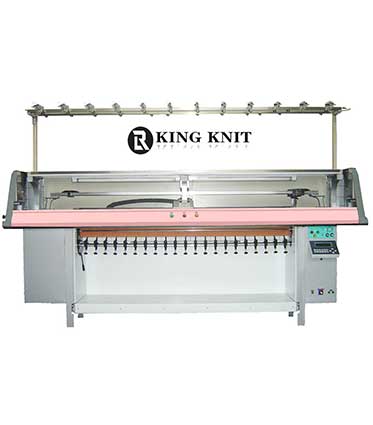

KFC-517 Semi-Automatic Flat Knitting Machine

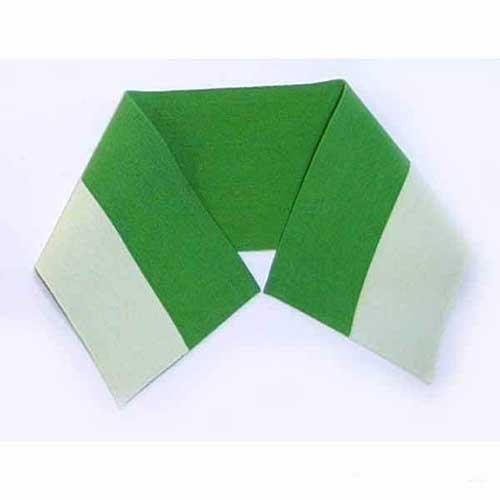

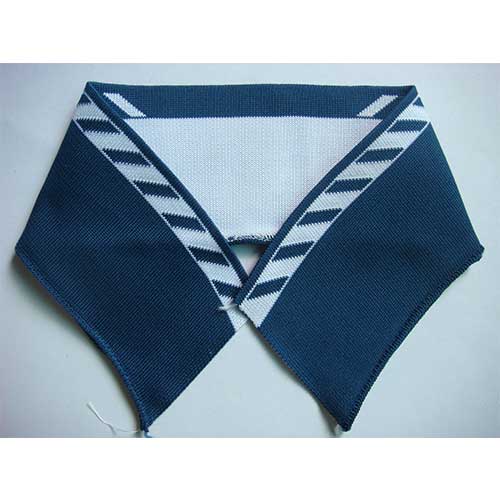

KFC-517 is a High Quality Collar /Cuffs Flat Knitting Machine, low cost and 1worker can operate two machines at same time, easy to make computer programming.
Main Feature:
Brand Name: KING KNIT
Model Number: KKJ-KFC-517
Product Type: Cuffs/Collar/Sweater Knitting Machine
Production Capacity: 1.2m/S
Gauge: 7G-18G
Knitting width: 40’’,52’’,72’’,80’’
Knitting speed:Max.1.2m/sec. Knitting speed varies according to gauge, yarn and knitting conditing
Yarn carrier: 6 yarn carriers on three double rails.

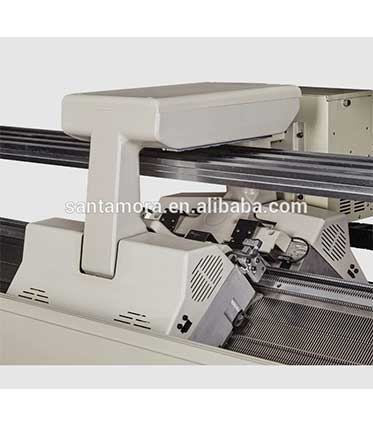

Cam system: Single system.Tuck on front bed & rear bed, high butt & low butt system

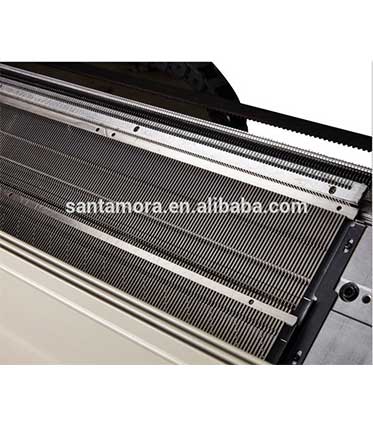

Needle bed: Replace able segment needle bed
Jacquard System: No Jacquard.
Stitch density:Electronic control with stepping motor 00-99 levels.
Racking:6 levels to left or to right
Fabric take-down:Compound main roller, torque motor control, high speed & low speed adjustable
Stop motion:Yarn break, knot, needle break, shock, fabric drop out, wraparound check, piece count, motor overload etc.
Drive: Timming belt, no oil needed, programming speed

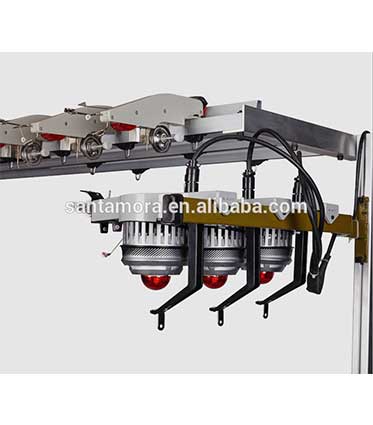

Top tentions: Electronic top tensions easy to thread the yarn through
Power: AC 220V, Single-phase 50/60Hz 1/2HP
Control system: Computer control LCD display.
Packaging Details: Packing in standard wooden case
Weight: 600-900KGS
